Automatic Adult Diaper Making Machine

DanE's fully automatic adult diaper making machine combines core forming, ADL application and servo-controlled material handling for disposable incontinence diapers. Automatic splicing, web guiding and splice waste removal support continuous production, with stable output of 300 pcs/min for M and L adult diapers.
  • Fully Automatic Operation: Feeding, core forming and assembly
  • Production Speed: 350 pcs/min | Stable Speed: 300 pcs/min
  • Automatic Splicing: Roll changes without speed reduction
  • Servo Material Control: Unwinding, tension control and web guiding
  • Waste Removal & Break Detection: Automatic removal and machine stop
Get a Quote Cost Calculator
Adult Diaper Machine

    Description

    Our fully automatic adult diaper making machine integrates absorbent core forming, ADL application, leak cuff forming, elastic feeding and multi-layer bonding into one production line. We configure these sections around your diaper design, coordinating fluff pulp and SAP processing with the assembly of the surrounding layers.

    Independent servo unwinding and tension control keep materials feeding steadily through the machine. Online web guiding maintains material alignment as nonwoven fabrics, backing film and other layers reach their assembly positions. These controls help manage the larger material widths and layered structures involved in adult diaper production.

    Automatic material splicing allows roll changes without reducing production speed, while automatic splice waste removal keeps material joints out of the finished-product stream. Material-break detection stops the machine when a web breaks, allowing operators to resolve the interruption before restarting. The line has a specified production speed of 350 pcs/min and a stable operating speed of 300 pcs/min.

    Parameter

    Parameter Specification
    Production Speed 350 pcs/min
    Stable Production Speed 300 pcs/min
    Qualified Product Rate ≥97% (excluding waste caused by glue applicators and material splicing joints)
    Production Efficiency ≥85%
    Installed Power 400–450 kW
    Power Supply 380 V, 50 Hz, three-phase, four-wire (adjustable according to regional requirements)
    Air Pressure 0.6–0.8 MPa
    Total Weight Approx. 120–130 tonnes
    Machine Dimensions 40 m × 10 m × 5.5 m (L × W × H)
    Finished Product Sizes M / L (according to order)
    Machine Direction Customizable
    Raw Materials Nonwoven fabric, SAP, PE film, fluff pulp, hot-melt adhesive

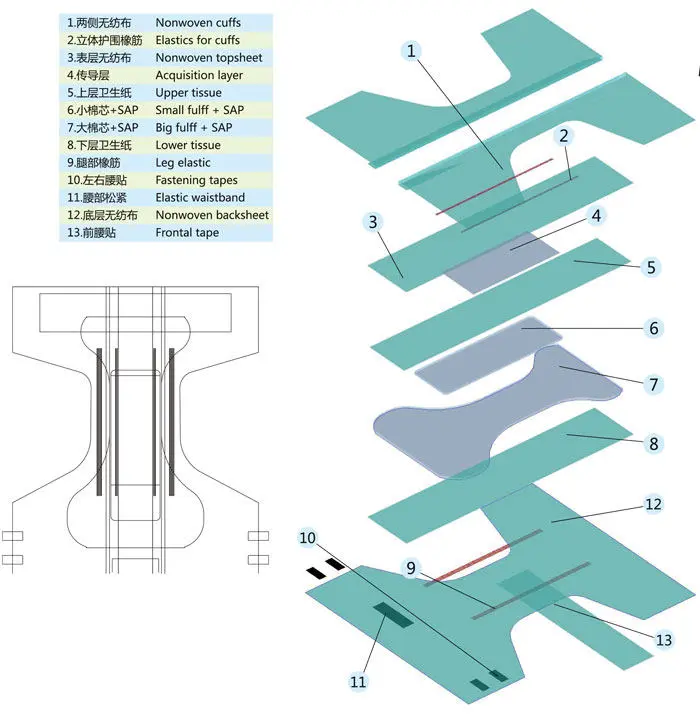

    Structure

    Diaper Production Process

    DanE's diaper making machines integrate absorbent core forming, layer lamination and product finishing into one continuous production line.
    Pulp crushing, vacuum forming, SAP metering and tissue wrapping prepare the absorbent core. ADL lamination, leak guard forming and elastic application are coordinated with the assembly of the core and backing materials.
    The process then moves through shaping, cutting and servo folding, with defect rejection, counting and stacking completing the finished-product flow.

    View Process Details
    Diaper Production Process

    Solution

    Auxiliary Equipment

    1. Hot Melt Glue System

      Uses Nordson or Robatech systems for precise and stable gluing.

    2. Auto Stacking & Bagging

      High-speed automatic stackers and baggers that connect directly to the main line.

    Auxiliary Equipment

    Packaging & Shipping

    1. Moisture-Proof Protection

      Heavy-duty wrapping to protect machines from moisture during sea shipping.

    2. Reinforced Steel Base

      Strong steel base and straps to keep machines stable during transport.

    3. Safe Global Delivery

      Uses Nordson or Robatech systems for precise and stable gluing.

    Packaging & Shipping

    Machine Recommendations

    Adult Pull-Up Diaper Manufacturing Machine
    Adult Pull-Up Diaper Manufacturing Machine

    Get a Quote & Technical Support

    Contact us to discuss your product, capacity, and machinery requirements. Our team will help you plan the right production solution.

    Contact DanE Team
    Contact DanE Team
    FAQ
    FAQ
    01
    Can you help us plan a new hygiene product factory?
    You can work with our team on equipment selection, production capacity, factory layout, and project cost analysis, including raw materials, labor, and operating expenses.
    02
    Can you upgrade our existing production line instead of replacing it?
    Certainly! We can assess which parts can be modified or upgraded while providing solutions compatible with your existing production line.
    03
    Can we visit your factory and inspect the equipment?
    You can arrange a factory visit to review our manufacturing and assembly processes. Equipment testing and acceptance criteria can also be agreed upon for your project before delivery.
